Variant
- 80 cm wide
- Installation: integrated
- Suitable for installation in an island or Semi-island kitchen solution
- Suitable for ducted or recirculating operation
- For recirculated extraction Clean Air Plus recirculation kit (accessory) needed
- Glass straight extab.w.o.light
- Type of frame: Top frame
- Top Frame suitable for seamless installation to create a unity with cooktop for a pure surface design

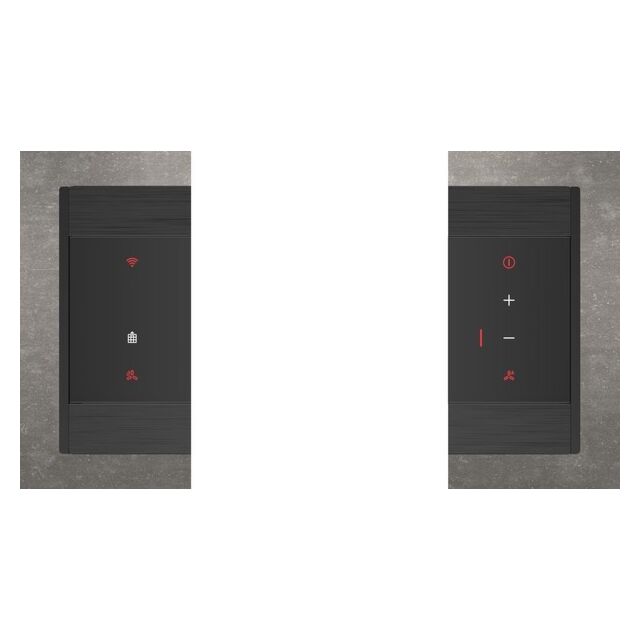

- TouchControl
- Spec. electronic: T34-BO2J
- The standard functions are located on the right-hand user interface
- TouchControl for extractor speeds and light
- 3 power levels and 2 intensive settings
- Automatic intensive revert (6mins)
- Automatic after running (Automatic after running (10 min))
- climateControl Sensor
- Hob based hood control
- Fully automatic hood
- Yes
- Box w. cass. st.st. frame bl.

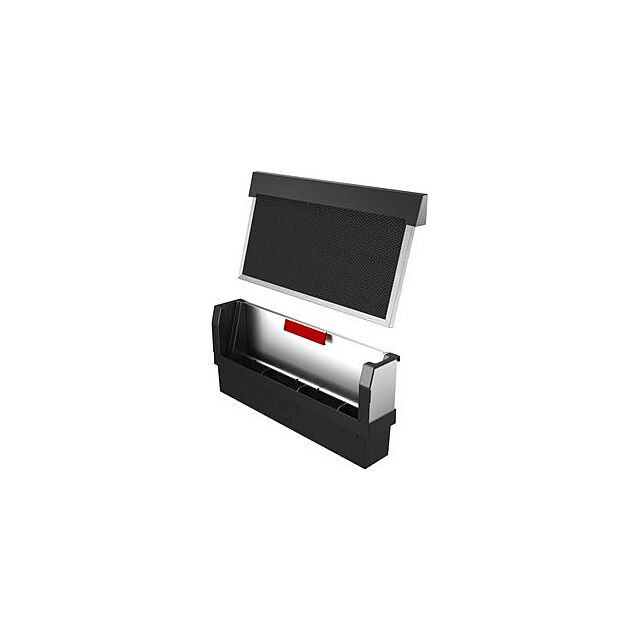

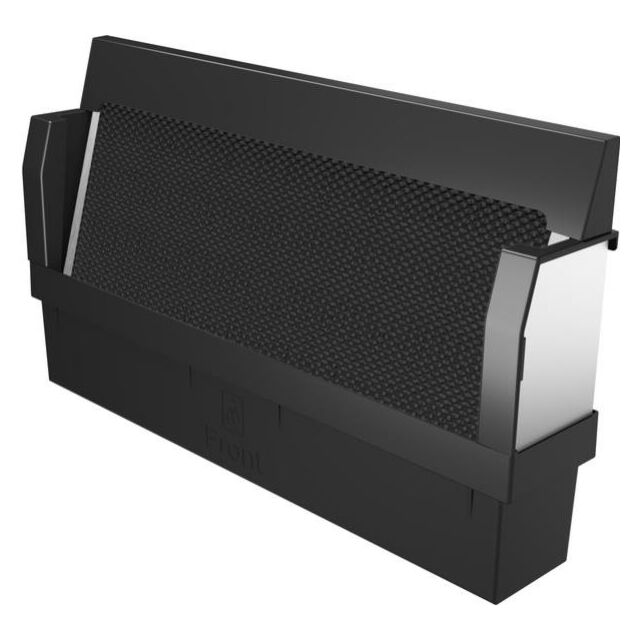

- 2 removable metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
- The filter service button automatically lifts filters into service position for easy removal
- The glass panel can be easily removed and cleaned
- Home Connect: Remote Monitoring and Control for connected home appliances and operation via smartphone or tablet (only in countries where Home Connect service is available)
- The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)
- Voice Control enabled via popular voice assistants (only in countries where this service is available)
- Interval function: available via Home Connect
- Silence function: available via Home Connect
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 501m³/h
- Intensive 775 m³/h
- Extraction rate exhaust air according to EN 61591:
- max. normal use 501 m³/h, intensive 775 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 62dB(A) re 1 pW
- Intensive: 70 dB(A) re 1 pW
- Maximum extraction rate exhaust air 501 m³/h according to EN 61591
- Extraction rate according to EN 61591 max. 775 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 62 dB(A) re 1 pW
- Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode:
- Max. normal use: 416m³/h
- Intensive: 525m³/h
- Noise level in recirculation mode:
- Max. normal use: 65dB(A) re 1 pW
- Intensive: 70 dB(A) re 1 pW
- SilentPowerDrive
- Max. extraction rate: 775 m3/h
- For seamless worktop installation a special accessory is required
- Suitable for installation into 90 cm cabinet
- Extension height 250 mm
- Dimensions (HxWxD): 709 x 802 x 140 mm
- Built-in dimensions (HxWxD): 703 x 781 x 123 mm
- Extractor hose 150 mm
- Electrical cable length 1.3 m
- Blower
- Please reference the built-in dimensions provided in the installation drawings
- Not suitable for combination with gas hobs
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 36.9 kWh/year*
- Blower Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Power rating: 300 W
| Special Offer Text 1 | Combination with gas hob is not possible |
|---|---|
| Hood Type | Downdraft |
| Type of Control / Appliances | Electronic |
| Type of Control Settings | Touch control;Via app |
| Manufacturer | Bosch |
| Construction Type | Built-In |
| Installation Type | Built-In |
| GTIN | 4242005450688 |
| Colour | Glass |
| Model Number | DDW88MM60B |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Plug Type | GB plug |
| Cord Length | 130 |
| Min Niche Width | 781 |
| Max Niche Width | 781 |
| Niche Depth | 123 |
| Noise Level | 62 |
| Typology | Downdraft |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 29.6 |
| Fluid Dynamic Efficiency Class | A |
| Lighting Efficiency Class | - |
| Grease Filtering Efficiency | 90.7 |
| Grease Filtering Efficiency Class | B |
| Max Air Flow | 501 |
| Min Air Flow | 223 |
| Air Flow Boost | 775 |
| Sound Power Max Speed | 62 |
| Sound Power Min Speed | 39 |
| Noise Level Boost Position | 70 |
| Max Output Air Extraction | 501 |
| Boost Position Air Extraction | 775 |
| Max Output Recirculating Air | 416 |
| Boost Position Output Recirculating | 525 |
| Grease Filter Material | Washable stainless steel |
| Number of Motors | 1 |
| Energy Rating | A |
| Warranty Duration | 2 |
| Diameter of Air Outlet | 150 |
